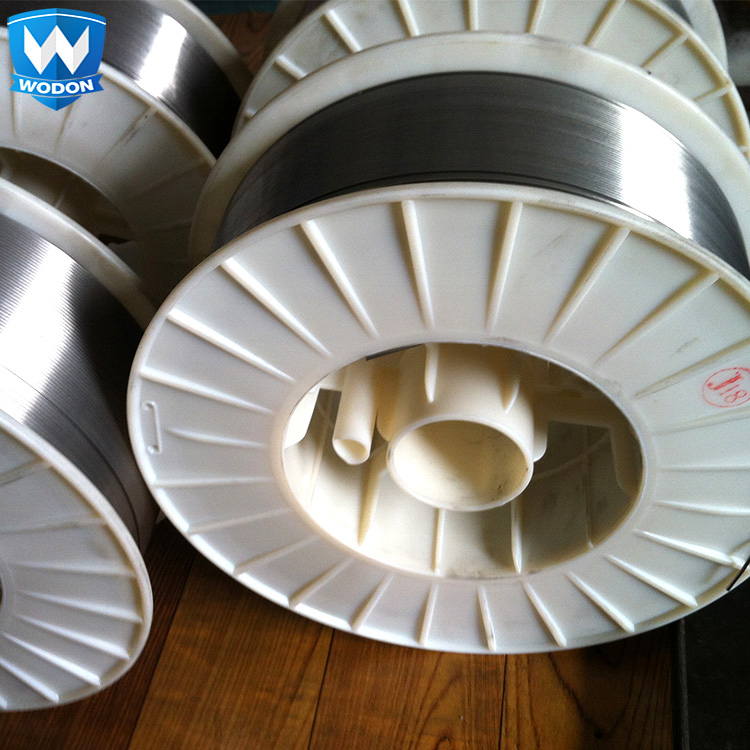

Product Name:Roller surfacing welding wire

Hardness:35-60HRC

Other Features:Customizable

Wodon roller welding wire is a high-performance welding material specifically designed for the repair and reinforcement of rolling…


 Key Features

  • High Wear Resistance: The welding wire contains high proportions of alloy elements such as chromium, molybdenum, and tungsten, which significantly improve the wear resistance of the welded joint.
  • Good Thermal Fatigue Resistance: This welding wire maintains high hardness and strength in high-temperature environments, effectively resisting thermal fatigue in continuous rolling processes.
  • Customization Services: According to customer requirements, we offer custom services, including the adjustment of alloy composition and the production of special-specification welding wires.
  • Wide Application: Suitable for the repair and remanufacturing of rolling mills in the steel and metallurgical industry, helping companies reduce production costs and improve the efficiency of roller use.
  • Quality Assurance: Complies with international quality standards and provides comprehensive technical support and after-sales service.


Specification

Open arc welding wear plate made by flux cored welding wire

We develop our hardfacing wear abrasion resistant flux cored welding wires always according to plate's characteristics. This guarantees good performance regarding no clearing slag, low welding spatter, smooth surface, high welding efficiency and a transition coefficient above 0.9.

Our production capacity  is 8000 tons wear plate welding wires per year, positioning ourselves as one of the main players on both domesitc and overseas markets. Our stable quality and good service result in increasing domestic and export sales year by year.

Specifications: 2.4/2.8/3.2mm

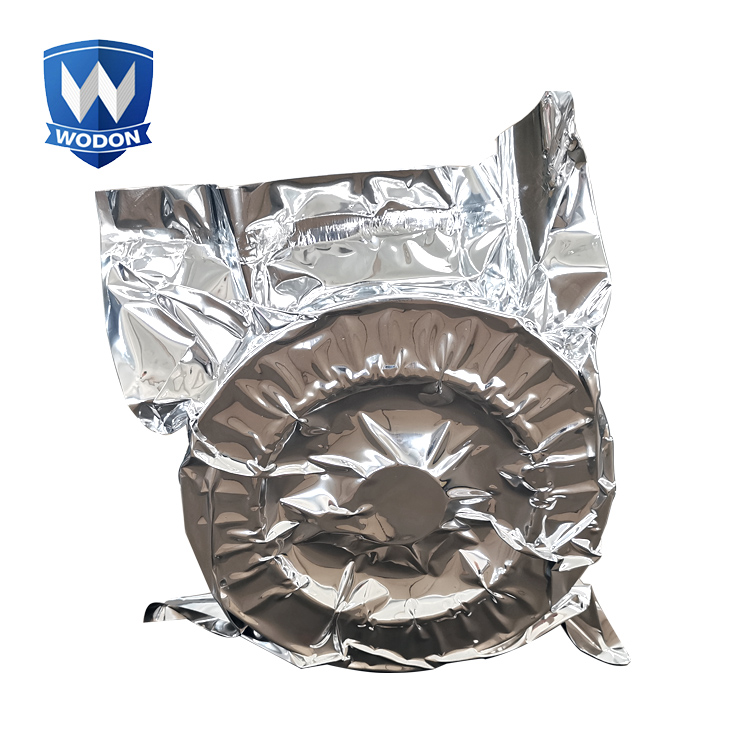

Package: 150-250kgs/drum (without joint)
Material: High carbon high chromium
Hardness: HRC58-65

Model
Specification (mm)
Hardness(HRC)
Main Ingredient
Main Application
WD161
2.4、2.8、3.2
58-65
C:3.0-5.0 Cr:22-27
Used for wear plate single layer hardfacing, hardness is up to HRC60 after welding.
WD261
2.4、2.8、3.2
57-63
C:3.0-5.0 Cr:22-27
Used for wear plate double layer hardfacing, hardness is above HRC60 after welding,good impact resistance and not easy to fall off.
WD361
2.4、2.8、3.2
57-63
C:3.0-5.0 Cr:24-30
Used for wear plate multi-layer hardfacing, hardness is above HRC60 after welding,good impact resistance and not easy to fall off.
WD181
2.4、2.8、3.2
58-65
C:3.0-5.0 Cr:22-27
Used for thin sheet welding, hardness up to HRC60 after welding, control overlay thickness below 3mm to ensure good wear resistance.
WD161H
2.4、2.8、3.2
58-65
C:3.0-5.0 Cr:25-32
Overlay has high chromium content after welding, good wear resistance. Used for wear plate single layer hardfacing.

 Applications

  • Steel and Metallurgical Industry: For the repair and reinforcement of rolling mills, including hot rolling mills, cold rolling mills, and continuous casting mills.
  • Mining and Construction Industry: For the repair and reinforcement of wear parts, such as excavator buckets, bulldozer blades, and conveyor rollers.

 FQS

Q1: What are the advantages of using Wodon roller welding wire?

A1: Wodon roller welding wire offers high wear resistance, good thermal fatigue resistance, and can be customized according to customer requirements.

Q2: What industries is Wodon roller welding wire commonly used in?

A2: It is widely used in the steel and metallurgical industry, mining and construction industry, and other heavy-duty machinery applications.

Q3: Can Wodon provide technical support for welding projects?

A3: Yes, Wodon provides comprehensive technical support and after-sales service to ensure the success of welding projects.

Q4: How do I store Wodon roller welding wire to maintain its quality?

 A4: Wodon roller welding wire should be stored in a dry, cool environment away from moisture and direct sunlight. Proper storage can maintain its quality for over two years.

For inquiries or assistance, please contact our team at [contact information].
